cutting device
Product features:
Hs-tsc thyristor switching switch is an electronic switch without mechanical contact, which can track the change of load reactive current. Zero crossing switching is adopted for power capacitor Banks, and there is no overvoltage arc phenomenon during the cutting process. The corresponding time is fast, can frequently cut. No noise, long service life, less maintenance, can be removed after the capacitor any voltage, any state of automatic input. It has the functions of missing phase, phase sequence automatic recognition, over temperature protection and alarm output, operation indication and so on. The main advantage is to ensure zero current switching, no inrush current, is a very ideal switching switch.

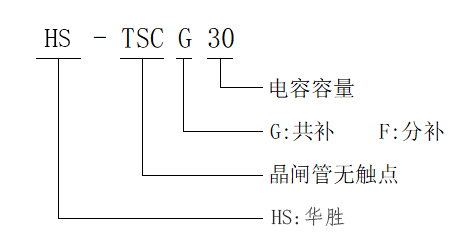

Model description:

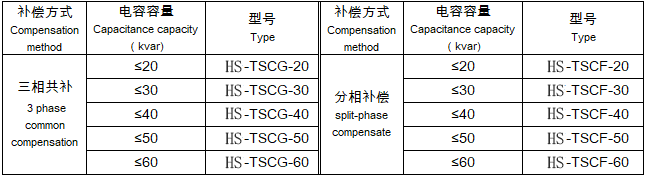

Selection instructions:

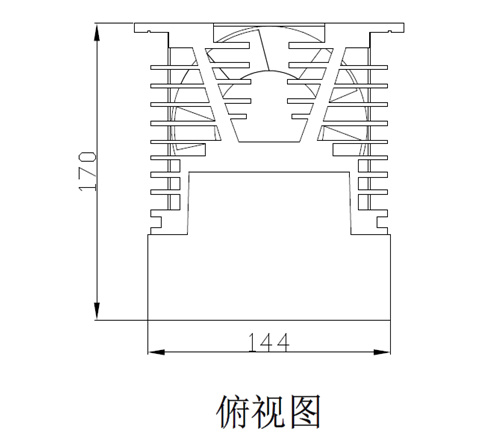

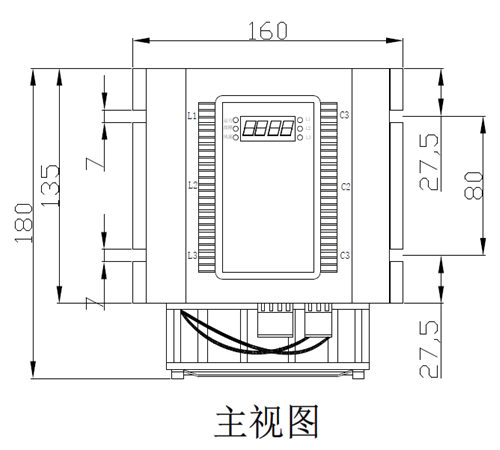

Size chart:
Installation size: 80mm×140mm

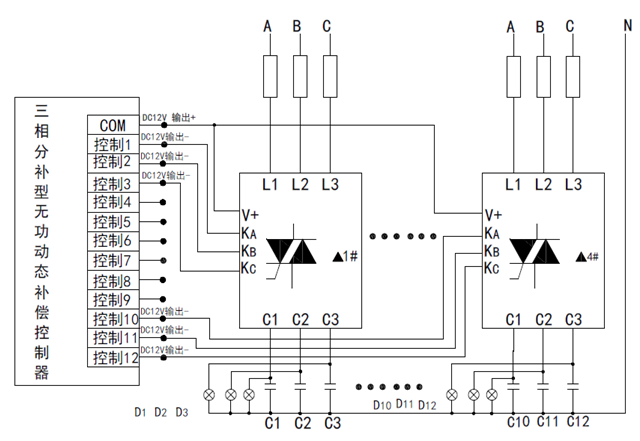

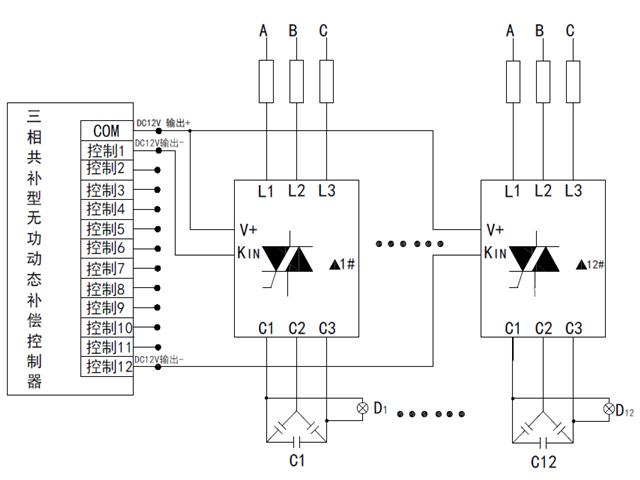

The wiring diagram:
